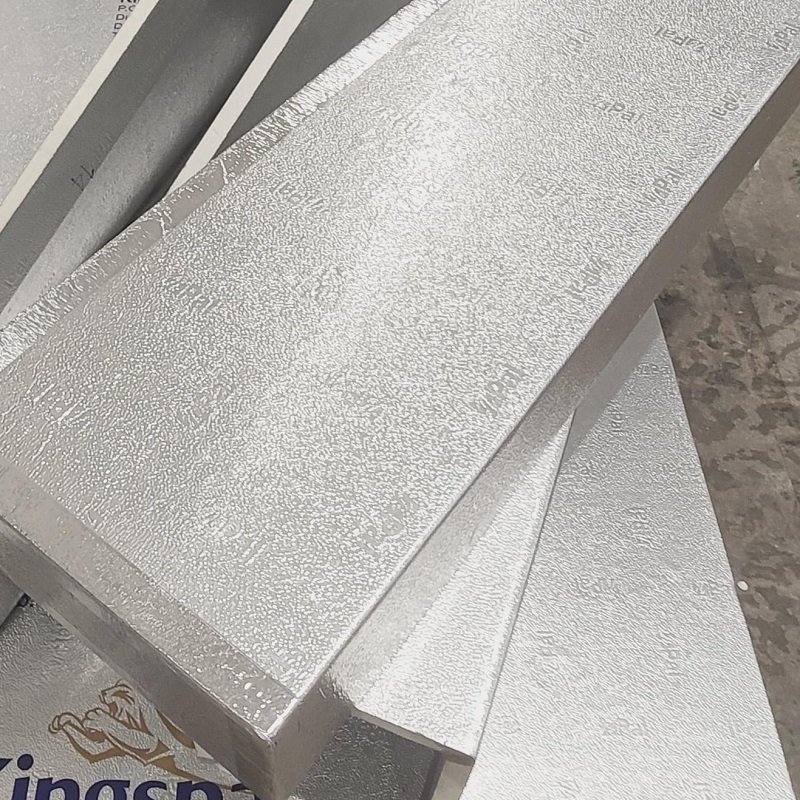

Kingspan PalDuct Pre-Insulated duct system is an innovative technology for ACMV ductwork, the rigid polyisocyanurate panel is used as an alternative of traditional GI for operation such as fresh air, supply, return and exhaust air ductwork for ACMV system.

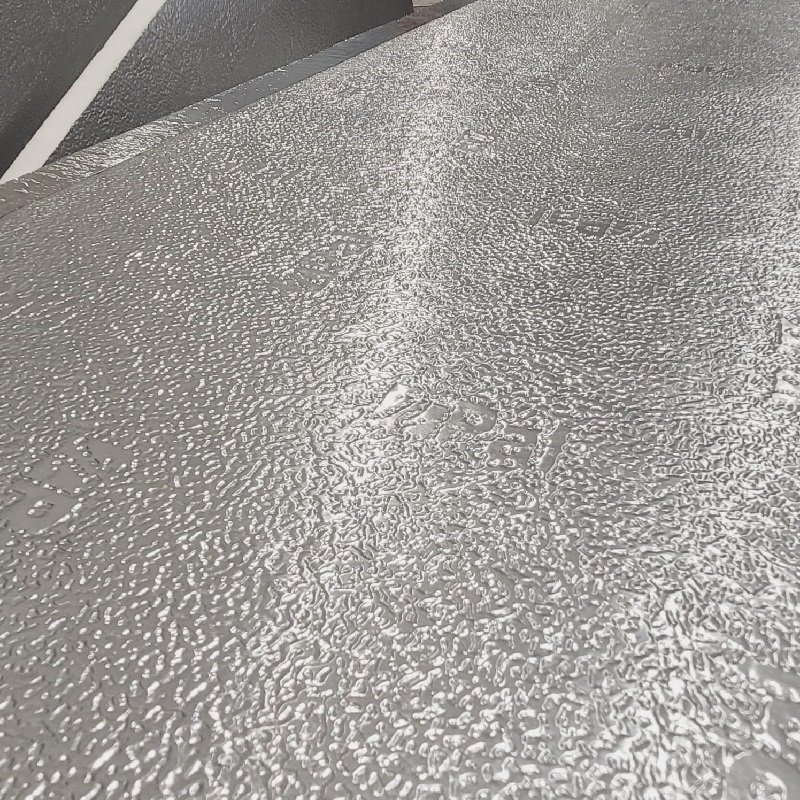

Kingspan PalDuct PIR Panels comprise a fibre–free high performance rigid thermoset polyisocyanurate (PIR) insulation core, faced on both sides with an embossed aluminium foil. The aluminium foil is lacquered with corrosion-resistant polymer varnish. PalDuct panels are suitable for the construction of air distribution ducts in air-conditioning and heating systems for internal use.
The material's main characteristics are: superior thermal K value, a high level of rigidity and lightness, extremely easy to handle and install.
PalDuct Pre-Insulated Duct System is specially developed for use in residential, commercial and industrial units of ACMV duct system to satisfy the thermal, airflow, fire and easy to installation requirement.
PalDuct Pre-Insulated Ducting System is Singapore Green Building Council certified pre-insulated duct product.
The Class 0 panel also conforms to all SCDF requirements and the relevant test reports are certified under TÜV SÜD PSB. PalDuct Pre-Insulated Duct System protects the surface from the spread of flames and limits the amount of heat released from the surface during a fire.
A rigid polyisocyanurate (PIR) foam panel coated on both sides with embossed aluminium with vapour barrier capabilities.
Closed polymer cell structure and the aluminium coating prevents water absorption.
Excellent thermal conductivity coefficient.
Easy to handle, cut and assemble.
Kingspan PalDuct PIR Panel (Internal Use)
Thermal conductivity coefficient λD 10ºC (W/mK)................................0.020
Aluminium Foil Thickness.....................................................................60 microns
| PalDuct | Panel Thickness | Aluminium Type |
| PALDUCT | 20 mm | Embossed with logo |

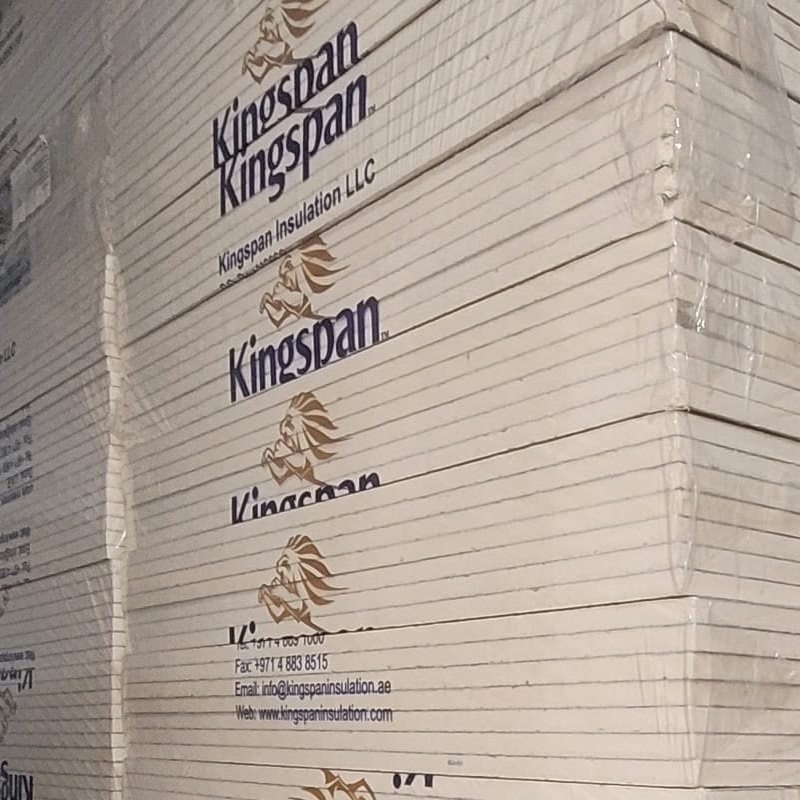

Standard Packing:
- 4000 x 1200 x 20 mm in packets of 7 units.
 |
 |
 |
 |
| F Profile (Aluminum) | H Profile (Aluminum) | U Profile (Aluminum) | Corner Piece |
 |
 |
 |
 |
| Tiger Connector | Silicone Sealant | Panel Glue | Aluminum Duct Tape |
 |
|||
| Panel Tool Box |
Related product documents for download
cls2_106267_0003_rev._00_initial_cls2n_106267_0002_rev._00.pdf
