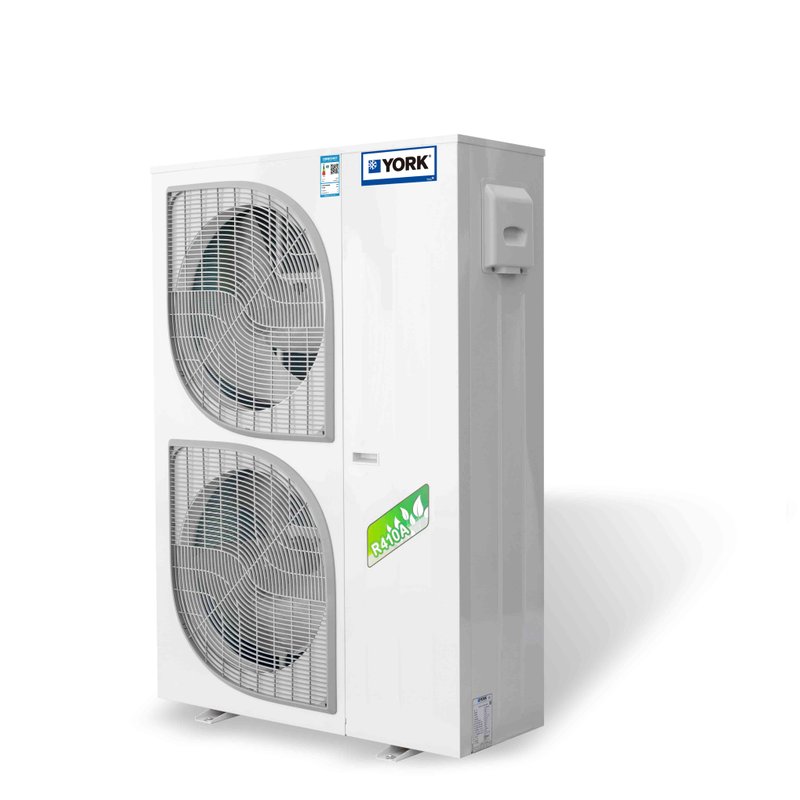

YORK YVAG AIR-COOLED

YVAG Air-cooled DC Inverter Reversible Heat Pump
Cooling capacities from 11.2 kW to 40 kW
Heating capacities from 12.6 kW to 42 kW

High Efficiency
Providing the lowest possible operating costs
YORK® YVAG is designed for real world efficiency. Part load performances meet the highest efficiency values and delivers performance beyond typical heat pump efficiency levels in cooling and heating. YORK®YVAG uses high efficiency DC inverter compressor together with advanced variable frequency drive technology which ensures stable operation across the entire operating range. Compressor frequency range goes from 15 ~ 120%, to quickly and efficiently meet the needs of residential load changes. YORK® YVAG units not only uses a high efficiency DC inverter compressor, but also dual fans equipped with high efficiency, low noise DC inverter motor which adjusts the air flow to exactly match the capacity in a more accurate and efficient way.

Easy Installation & Operation
Modular concept
The small packaged YORK® YVAG heat pump comes as standards with a hydronic loop circulating pump, expansion tank, water flow switch, safety valve, fill valve and wye-strainer, saving space in the room and making installations easy and fast. The pumps external head can provide up to 22m.

The units are designed for modular installations (up to 4 module combinations among all the models) to meet the needs of different residential and light commercial building demands. This permits installed capacities from 11.2-160kW.

Perfect Comfort in a Wide Operating Range
Wide operating envelope with lower sound levels
With the wide operating range, YORK® YVAG is perfect for all climates. It does not matter if the ambient temperature in summer is 48°C or if in winter is -25°C, as the unit will maintain the efficiency in stable operation, to provide users with the most comfortable air conditioning experience. With the heating outlet water temperatures up to 58°C, the unit is perfect for radiant panels.

Low Sound Optimized
Thanks to the YORK® YVAG component design, the unit sound emissions are as low as 54 dB(A) Sound Pressure at full load, reducing to as low as 40 dB(A) at part load operation. YORK® YVAG also has Silent Mode available, which reduces the sound level emissions by 5 dB(A) below full load levels.
